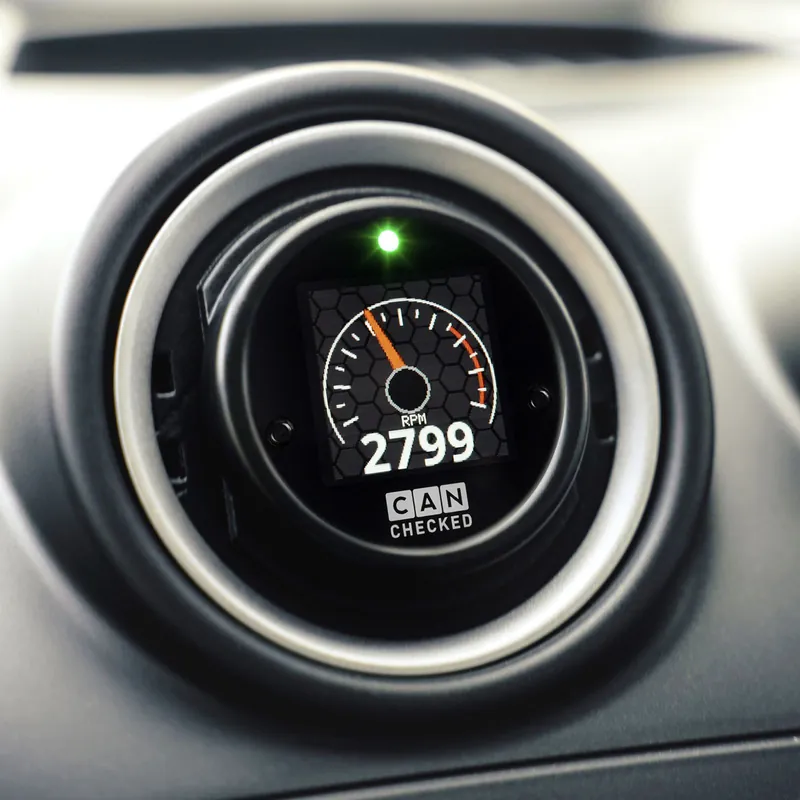

With this vehicle-specific CANchecked MFD15 Gen2 data display for your Jeep Wrangler Gladiator you always have all relevant values in view

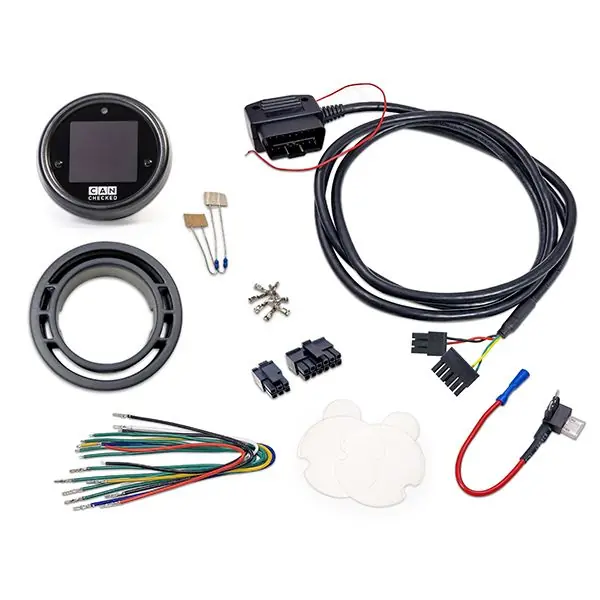

The MFD15 Gen2 is equipped with an OLED screen, which offers best readability even in direct sunlight. This kit is supplied with a vehicle-specific bezel and a connection kit. It is operated using the two push buttons on the faceplate. You can also connect our optional rotary knob.
Key Features
- Compact design: 52 mm in diameter and only 12.5 mm deep
- Faceplate-mounted LED: The LED on the front of the display can be used as a shift light and/or as a warning LED
- Can Bus: Support of Can Bus ECUs, own Can streams and from 2008 on OBD2 and deep values for VAG-cars
- WiFi: connect to your smartphone or PC and configure it using our Web App
- Additional inputs: connect up to 6 analog sensors to the inputs or connect an ethanol sensor* directly to the display
- Preset Alarms: predefined alarms can be easily activated and customized. For example, get a big alert when the exhaust gas temperature is above 900 degrees.
- Customization: Use your own startup logo and color scheme to make it your MFD15 Gen2
- Online logging*: Log your data with your smartphone or PC and save the log to your device for later analysis
- Flex Fuel*: View ethanol content and temperature on your display
- Can Switching*: Switch can switches using the buttons on your display and forward the readings from your analog inputs to the can bus
Different views
Choose up to eight pages of different views and customize your display to best suit you and your vehicle:
- Analog pointer
- Double value
- Gear indicator
- 4-fold values
- 6-fold values
- Bar + double display
- Round display
- Bar graph (double across)
- Performance Meter
- Bar chart (1-6-fold upright)
- Single value
Configuration using Online Display Setup Software – oDSS
Select the sensors you want to display graphically.
Flex Fuel Ethanol Sensor directly on the MFD15 Gen2
With the additional license for the ethanol sensor, you connect the sensor directly to the display. You need a pullup resistor (10K) between 5V and the signal.
Now you can see the ethanol content as well as the fuel temperature and also log it.
Can Switching and AIN forwarding
With the additional license for Can Switching and AIN forwarding you can use the keys of your display or the rotary knob to switch Can Switches and apply the input voltages of your analog inputs to the Can Bus.
